520H Rear Axle Oil Seals

  • Kurt-NEPA
  • Topic Author
  • Offline
  • Super Moderator
  • Super Moderator
    Registered
More
22 Mar 2015 16:49 #1587 by Kurt-NEPA
520H Rear Axle Oil Seals was created by Kurt-NEPA
I've started working on the basket case 93 520H that followed me home in December. Lots of things need attention. So I'm taking them one at a time. I jacked up the rear of the tractor and both rear hubs are loose. I popped them off and I will need to cut new key slots. The right rear seal is leaking badly. It looks like I can pop the seal out. Anyone have any tips on removing the seals? I'm thinking of drilling or punching a hole and prying away.

1988 520H
1995 520H
1998 520xi
2000 522xi
1950 Ford 8N
1955 Ford 660
Single Stage Blower
2-Two Stage Blowers

Please Log in to join the conversation.

More
22 Mar 2015 17:00 #1588 by M Bailey
Replied by M Bailey on topic 520H Rear Axle Oil Seals
Kurt I've always used a thin flat common screw driver and driven it into the center steel portion of the seal and pried it out from there. Did both axle seals on my C-161 that way last year. Wish I'd taken pics.

Major


"I refuse to join any club that would have me as a member." Groucho Marx

Please Log in to join the conversation.

  • Trouty56
  • Offline
  • Supporter
  • Supporter
    Registered
  • Hydros Rule!!
More
22 Mar 2015 17:08 - 22 Mar 2015 17:08 #1589 by Trouty56
Replied by Trouty56 on topic 520H Rear Axle Oil Seals

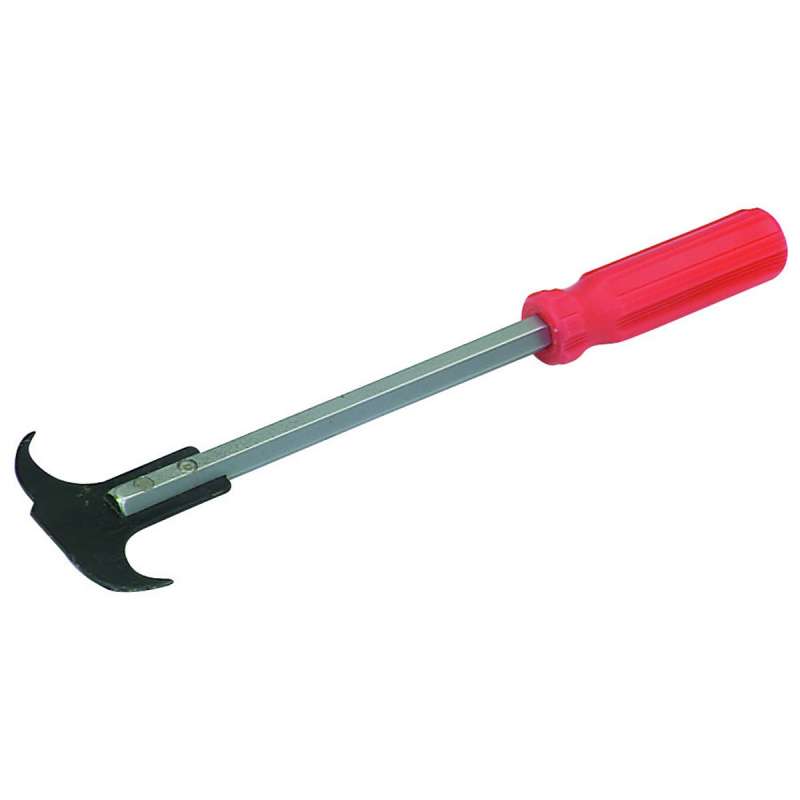

They make a seal pick.....I've drilled small holes and put small screws in the holes and pulled it out with a pliers.....both sides at once seems to work sometimes pretty good.....I've followed Major's plan of attack if that doesn't do it.....


Bob T
Adams County Pennsyltucky


"One, that's easy to remember. It's the first number in the alphabet...." - Barney Fife
Last edit: 22 Mar 2015 17:08 by Trouty56.

Please Log in to join the conversation.

  • Kurt-NEPA
  • Topic Author
  • Offline
  • Super Moderator
  • Super Moderator
    Registered
More
22 Mar 2015 17:34 #1604 by Kurt-NEPA
Replied by Kurt-NEPA on topic 520H Rear Axle Oil Seals
Thanks guys. I have a seal pick, I'll try that first. My seal pick seems too flimsy. If that's a no-go, I'll try the screw/small screw driver approach. New seals on order, due here on Thursday.

1988 520H
1995 520H
1998 520xi
2000 522xi
1950 Ford 8N
1955 Ford 660
Single Stage Blower
2-Two Stage Blowers

Please Log in to join the conversation.

  • Geno
  • Offline
  • Administrator Supporter
  • Administrator Supporter
    Super Users
  • Wheel Horse Stables Owner
More
22 Mar 2015 17:43 #1611 by Geno
Replied by Geno on topic 520H Rear Axle Oil Seals
Glad to see you're getting started on fixing the old gal up Kurt! I try everything with a screwdriver first, it's always in my back pocket. :thumb1

Welcome to the Stables!

Please Log in to join the conversation.

  • GT 14
  • Offline
  • Super Mod - Supporter
  • Super Mod - Supporter
    Registered
More
22 Mar 2015 17:53 #1617 by GT 14
Replied by GT 14 on topic 520H Rear Axle Oil Seals
If the shaft is out this is what I use.



Shaft in puncher and pray.

1969 GT-18
1978 C-101
1983 C-225
Attachments:

Please Log in to join the conversation.

  • jm46322
  • Offline
  • Supporter
  • Supporter
    Registered
  • further behind then he ever admits
More
22 Mar 2015 17:57 #1619 by jm46322
Replied by jm46322 on topic 520H Rear Axle Oil Seals
i have removed many seals with small sheet metal screws.
if i know what is behind it wont be damaged i will
get small sheet metal screws that are long or some better drywall screws even work well
drill 2 or 3 holes in seal equally spaced around it
grind the point off the screw
start putting the screws in the drilled holes
as they bottom out go just half turn more on each
go back and forth on the screws and you will jack out the seal. bingo........

John in Highland Indiana
self appointed chief mechanic at
WOODWARD FARMS

Please Log in to join the conversation.

  • GT 14
  • Offline
  • Super Mod - Supporter
  • Super Mod - Supporter
    Registered
More
22 Mar 2015 18:01 #1622 by GT 14
Replied by GT 14 on topic 520H Rear Axle Oil Seals

jm46322 wrote: i have removed many seals with small sheet metal screws.
if i know what is behind it wont be damaged i will
get small sheet metal screws that are long or some better drywall screws even work well
drill 2 or 3 holes in seal equally spaced around it
grind the point off the screw
start putting the screws in the drilled holes
as they bottom out go just half turn more on each
go back and forth on the screws and you will jack out the seal. bingo........


I like that idea! :idea

1969 GT-18
1978 C-101
1983 C-225

Please Log in to join the conversation.

  • Kurt-NEPA
  • Topic Author
  • Offline
  • Super Moderator
  • Super Moderator
    Registered
More
22 Mar 2015 18:31 #1628 by Kurt-NEPA
Replied by Kurt-NEPA on topic 520H Rear Axle Oil Seals
Yep Geno, I started. It got up to 28 degrees today, just enough to do a little work. I pulled the left hub last week and cut a new key way 180 degrees out. It fit right on today. I'm worried about the slot on the axle, but so far it seems tight enough. I pulled the right hub and it was soaked in oil. No doubt the seal is toast. So, now I wait for parts. In the mean time I will cut a new key way slot in the right hub. Where is spring? I have lots of painting to do.

1988 520H
1995 520H
1998 520xi
2000 522xi
1950 Ford 8N
1955 Ford 660
Single Stage Blower
2-Two Stage Blowers

Please Log in to join the conversation.

  • Kurt-NEPA
  • Topic Author
  • Offline
  • Super Moderator
  • Super Moderator
    Registered
More
22 Mar 2015 18:35 #1629 by Kurt-NEPA
Replied by Kurt-NEPA on topic 520H Rear Axle Oil Seals
GT, the axle shaft is still in, so that puller won't work.

jm, I like the screw approach. I think I will try it. Worst case is that I will pull the axles and punch it out from the other side. I really don't want to do that.

Thanks.

1988 520H
1995 520H
1998 520xi
2000 522xi
1950 Ford 8N
1955 Ford 660
Single Stage Blower
2-Two Stage Blowers

Please Log in to join the conversation.
